How to clone kazzo for Nintendo Famicom (2019 and later models)

IMG_6761

This is a device for using “Nintendo Famicom “cassette data on a personal computer. I will explain how to make a Kazzo clone kit (2019 model).
You can purchase this kit here.
kazzosale

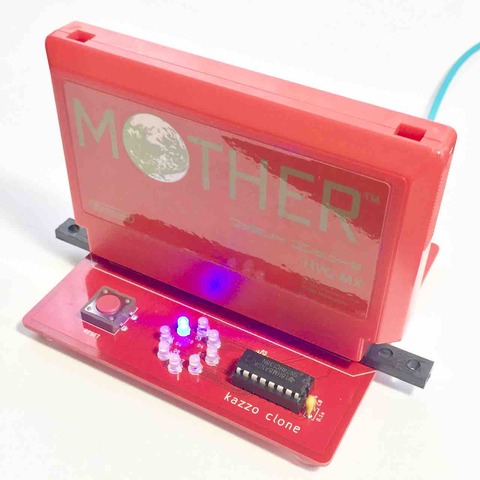

Please see here for how to make models before 2019.

In the 2019 model, to make it easier to make, we use surface mount components as much as possible and mount components in advance. It can be completed simply by soldering the remaining DIP parts, the switch and the connector.
Let’s make it.

1.switch
kazzosol30
Attach as follows. | (ON) is upward. | Is on, ○ is off. By the way, | represents binary 1 and ○ represents binary 0. | Is on and ○ is off because 1 = ON and 0 = OFF.
kazzosol21
Cut the soldered legs with nippers from the base so that they are as short as possible. If not cut, the power supply may be short-circuited.
2.connector
kazzosol31
There is no polarity. After soldering, cut the legs short with nippers, just like switches.
3.Rubber feet
kazzosol32
Attach rubber feet to the four corners. This is completed.



Operation test

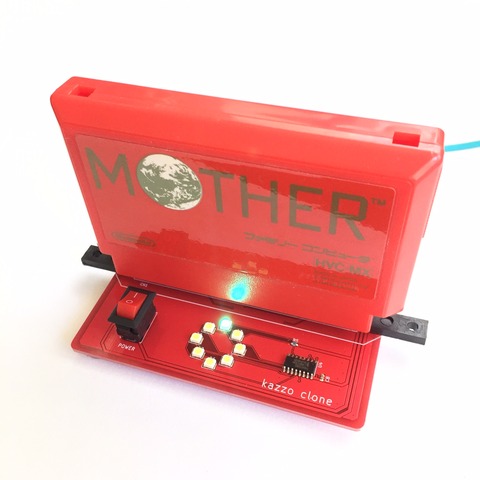

Connect USB to PC and switch on. It is OK if any of the LED glow.
IMG_6848
At the time of manufacture, we have checked that the LED is lit as an operation check and that it can be recognized normally by a personal computer. So if the LED did not glow in this test, you can predict the following reasons:
  • Bad solder of switch: Please re-solder solder part of switch
  • Connector short-circuit: Check if the pins of the connector are short-circuited with solder
  • Bad USB port: Change to another port on your PC
Driver setup
Please set up referring to here.
Depending on the personal computer, it could not be recognized correctly. In that case, try another computer.
You can purchase this kit here.
kazzosale
We are selling a remodeling kit that clearly and clearly enhances the image quality and outputs natural pseudo stereo sand video! You can enjoy powerful Famicom on ordinary TV.
